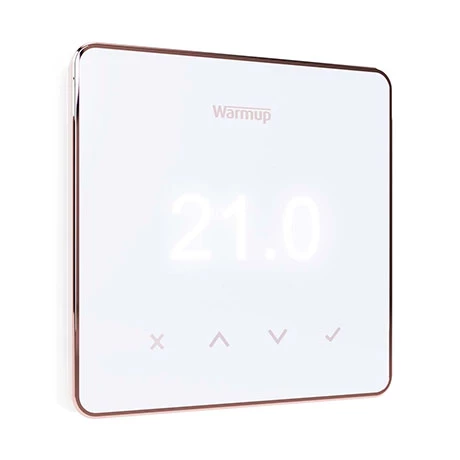

Warmup Element WiFi Underfloor Heating Thermostat – Light

Warmup’s Element WiFi Thermostat has been designed with simplicity and stylish functionality in mind. It brings energy-efficient heating control to all Warmup floor heaters. Combining smart technology with simple, contemporary design, the Element WiFi Thermostat is the perfect all-rounder to control Warmup heating systems. The Element WiFi Thermostat utilises simple touch buttons for accurate control of your underfloor heating system. Its sleek, unobtrusive design will suit any home décor.

Product Details

• Product Code: ELM-01-WH-RG
• Housing Colour: Light
• Band: Rose Gold
• Sophisticated, stylish design
• Helps save over £400 on energy bills
• Simple touch button control
• Compatible with all Warmup Underfloor Heating Systems
• Automatic heat functionality
• Weather-based Early Start – no wasted energy
• Helps find the most efficient heat settings for your home
• Quick to install, set up in minutes using the QR code

• Operating Voltage: 230 V AC ±15%, 50 Hz
• Maximum Load: 16 A (~3680 W)
• Max. ambient temperature: 40 ºC
• Dimensions: 86 x 86 x 16 mm (from the wall)
• Screen Size: 1,8 in
• Sensors: Air and floor
• Floor Sensor Type:NTC10k (3 m long)
• Installation Depth: 50mm back box recommended (35mm minimum)
• IP rating: IP33
• Er-P class: IV
• Approvals: BEAB and CE marked

Guarantee

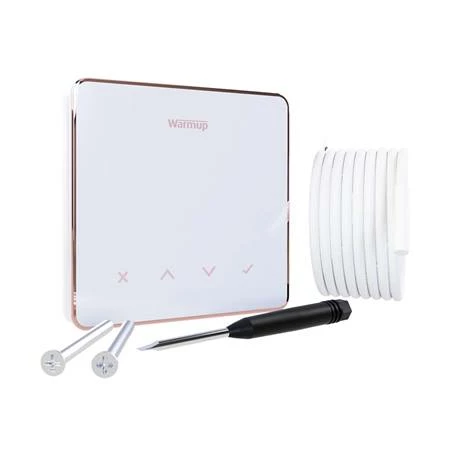

Pack Contents

1 x Element (Display & Power Base) with installation manual
1 x 3m NTC10K Sensor
2 x M3.5 x 25 x 0.6P screws
1 x Screwdriver
